SINGLE-SIDE, DOUBLE-SIDE GASEOUS DIAPHRAGM PRESSURE GAUGE
N2 Gaseous ：
N2 Gaseous diaphragm main application is with special working environment.Afraid that it might contaminate piping, facilities & fluid corrosiveness.
Suitable for use in LCD facilities, dust-proof semi-conductor line facilities,
biochemical technology facilities, etc., and can maintain high-tech cleanliness.
Feature:
- Liquid material is fluoride resin, good pharmaceutical character.
- Usable with hydrofluoric acid, strong acid, alkali.
- Casing were made of resin.
- Vapor passes through a way for particular dual structure possesses corrosiveness.
- Seal up way for dual seal up structure.
- Cannot contaminate the whole set-up if nitrogen leakage & capsule damaged.
- Inside structure design has anti-shock resistant & can lower pressure indicator shaking.
- Diaphragm is filled with nitrogen (N2 99.99%) for better stabilization.

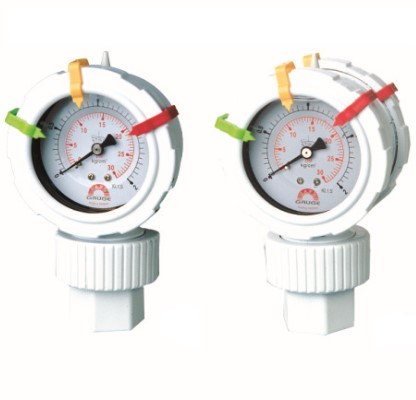

- Attached 2~3 safety pointer (green, yellow, red) for better operation.
Specification
- DIAMETER: 2.5"
- PRESSURE RANGE: 0.35kg/cm² ~ 50kg/cm² (5psi ~ 700psi)
- CASING & BEZEL: PVDF
- CONNECTION: 1/4PT, 1/2PT mount OR other panel mount
- FLUID USAGE: pure water, chemical fluid, gaseous body
- DIAPHRAGM: PVDF
- CAPSULE: TEFLON
- ACCURACY: ±1.0% F.S.D
- TEMPERATURE RANGE: -10°C to +160°C (TEFLON)(PVDF)
- Models: MS-EW/25 and MR-EW/25

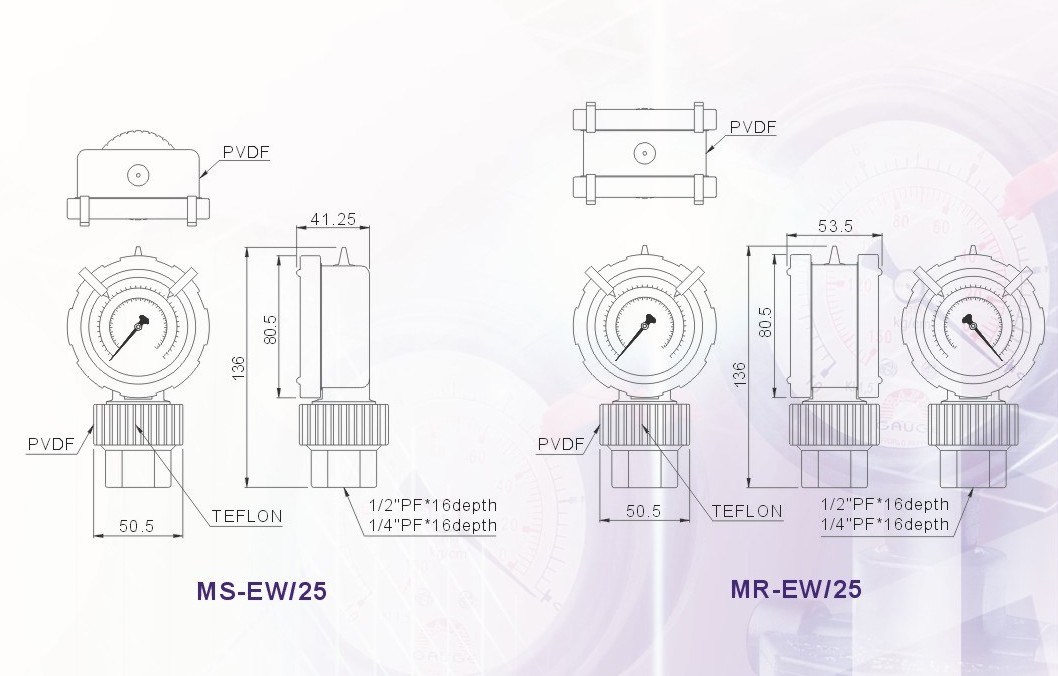

Product Models & Dimensional Drawings
This series offers two models: MS-EW/25 and MR-EW/25, suitable for different installation orientations and space requirements.
Both models are equipped with a standard 1/4PT connection and feature a dual-seal structure for enhanced safety and reliability.
 |
 |
