Double-Side Liquid Filled Pressure Gauge | Technical Specifications & Dimension Drawings
Technical Specifications
-
Diameter: 50, 63, 100, 150(mm) ; 2", 2.5", 4", 6"
-
Pressure Range: -76cmHg ~ 0 ~ 1000kg/cm² (-30inHg ~ 0 ~ 15000psi)
-
Casing & Bezel: SUS 304 Stainless Steel or EPDM Coated, Impact-Resistant PP, PVDF
-
Bourdon Tube: Brass or Phosphor Bronze
-
Filling: 99.5% Glycerin or Silicone Oil
-
Connection: 1/8", 1/4", 3/8", 1/2", PT, NPT, BSPT, PF
-
Accuracy: ±1.0% F.S.D / ±1.5% F.S.D
-
Operating Temperature Range: -20°C ~ +60°C
-

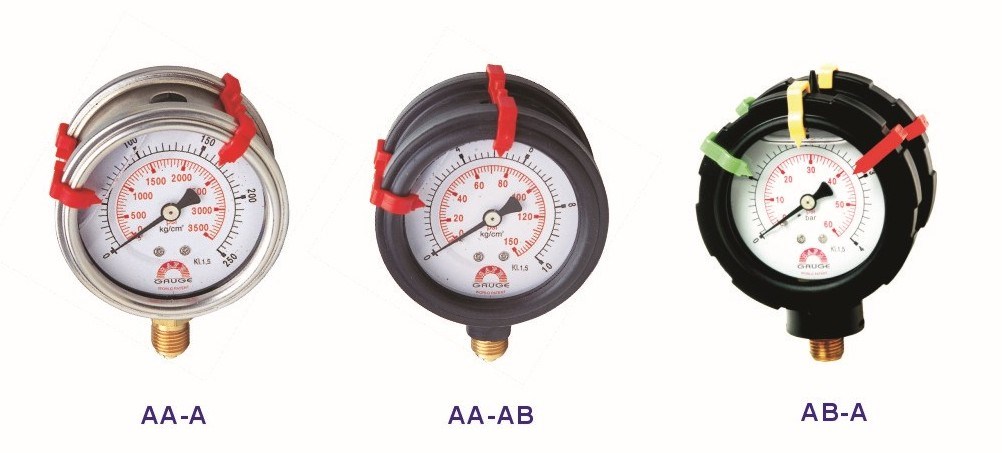

Models: AA-A、AA-AB、AB-A

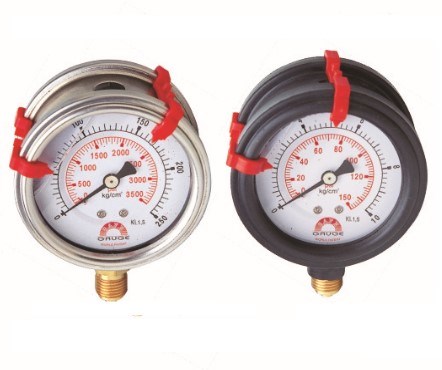

Note: For 2.5" and 4" diameter gauges, two red safety pointers are included to define the safe operating range.

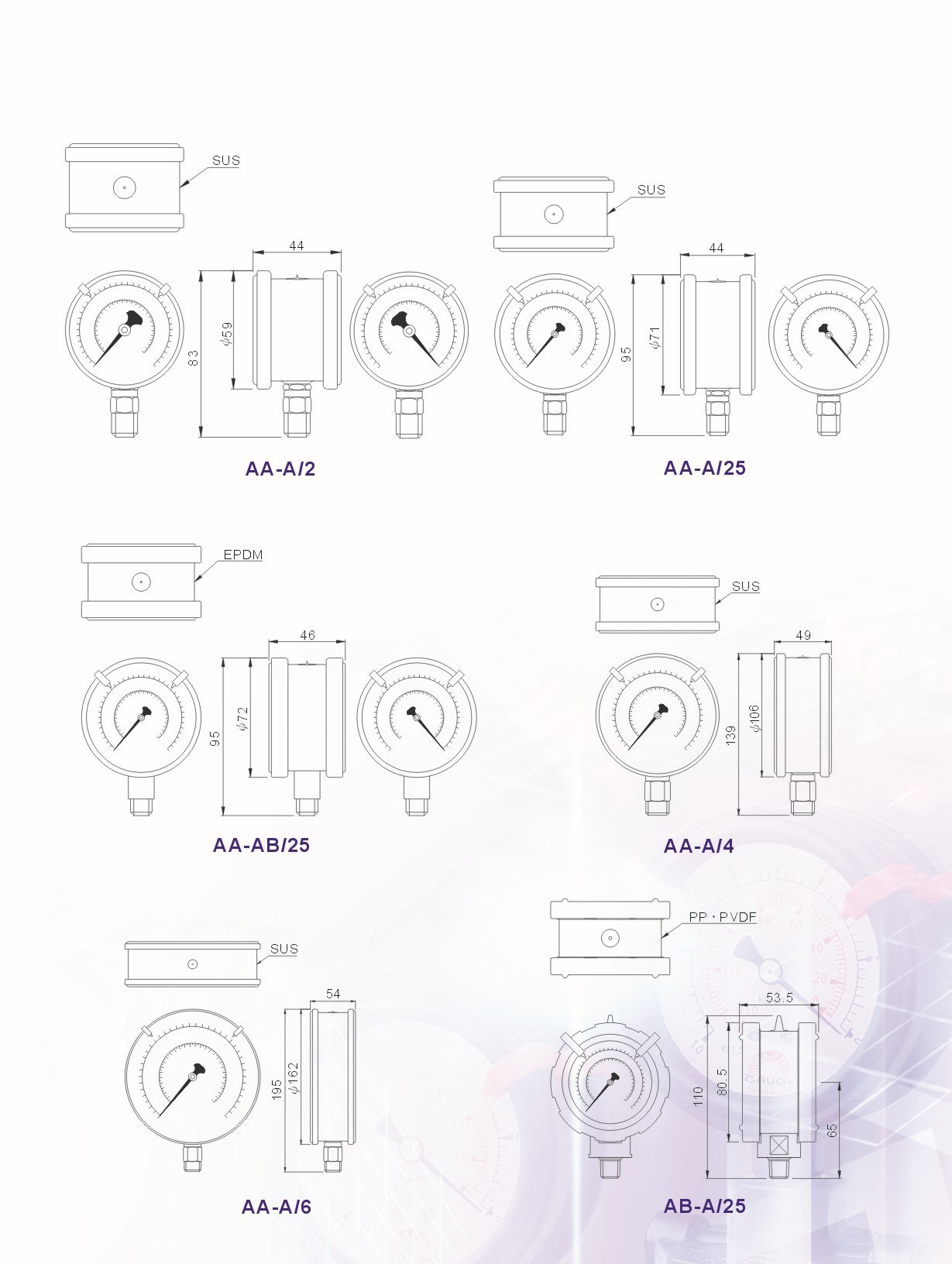

Product Models & Dimension Drawings
 |
 |
