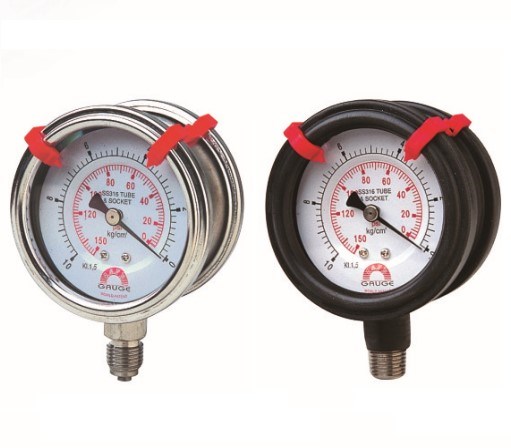

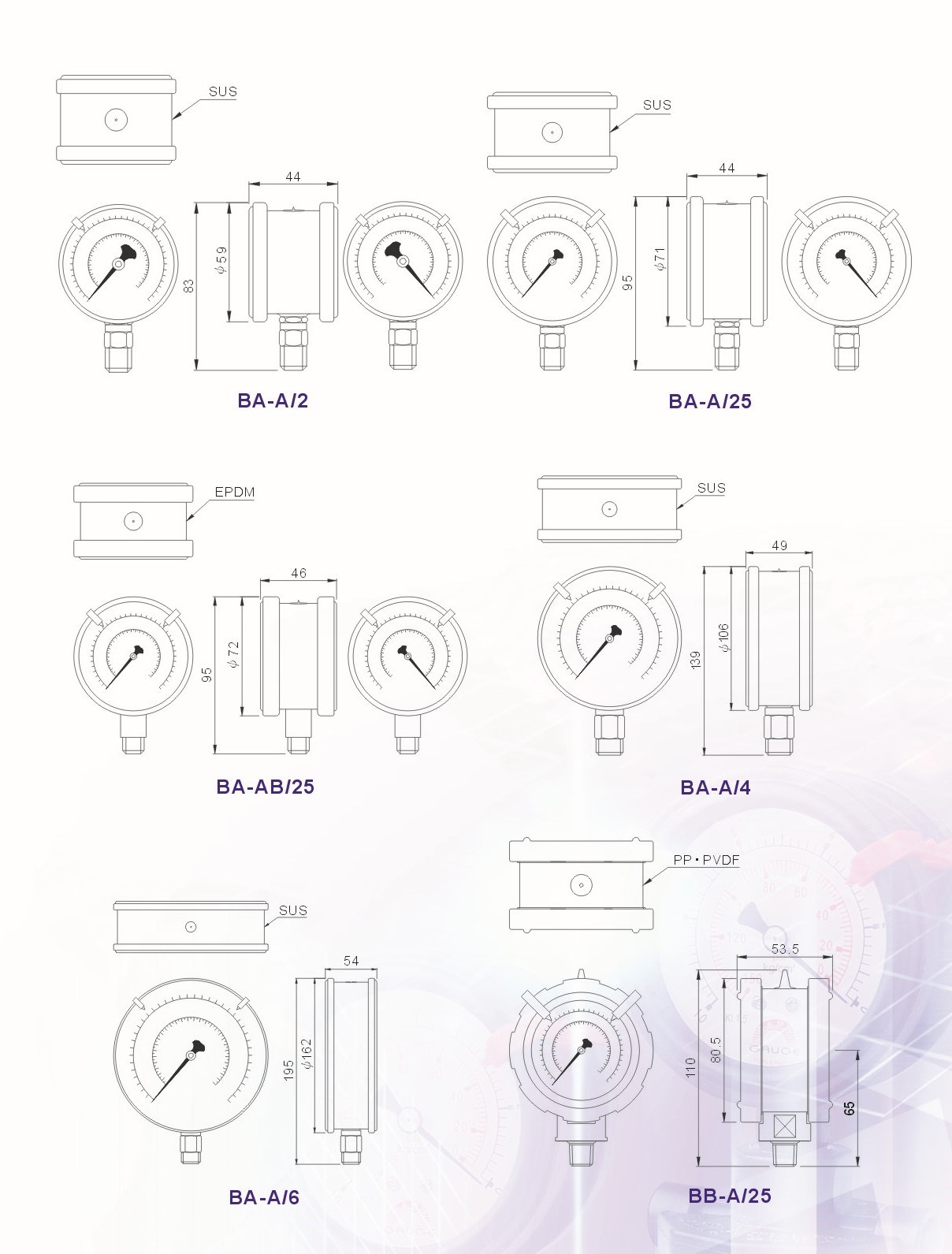

Double-Side All Stainless Pressure Gauge | Technical Specifications & Dimension Drawings

Technical Specifications

Diameter: 50, 63, 100, 150(mm) ; 2", 2.5", 4", 6"
Pressure Range: -76cmHg ~ 0 ~ 1000kg/cm² (-30inHg ~ 0 ~ 15000psi)
Casing & Bezel: SUS 304 stainless steel or EPDM coated, impact-resistant PP, PVDF
Bourdon Tube: 316L stainless steel
Filling: 99.5% glycerin or silicone oil
Connection: 1/8", 1/4", 3/8", 1/2", PT, NPT, BSPT, PF
Accuracy: ±1.0% F.S.D / ±1.5% F.S.D
Operating Temperature Range: -20°C ~ +200°C

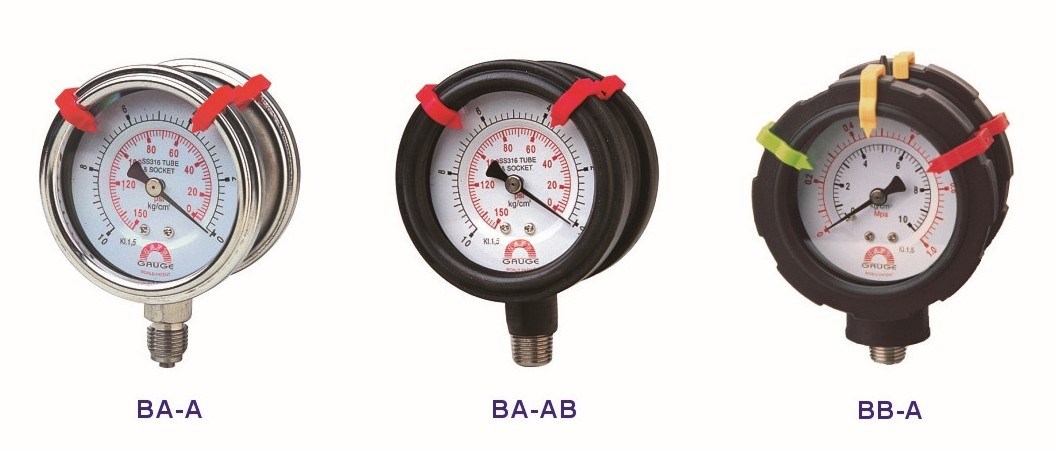

Models: BA-A、BA-AB、BB-A

Note: For 2.5" and 4" diameter gauges, two red safety pointers are included to define the safe operating range.
