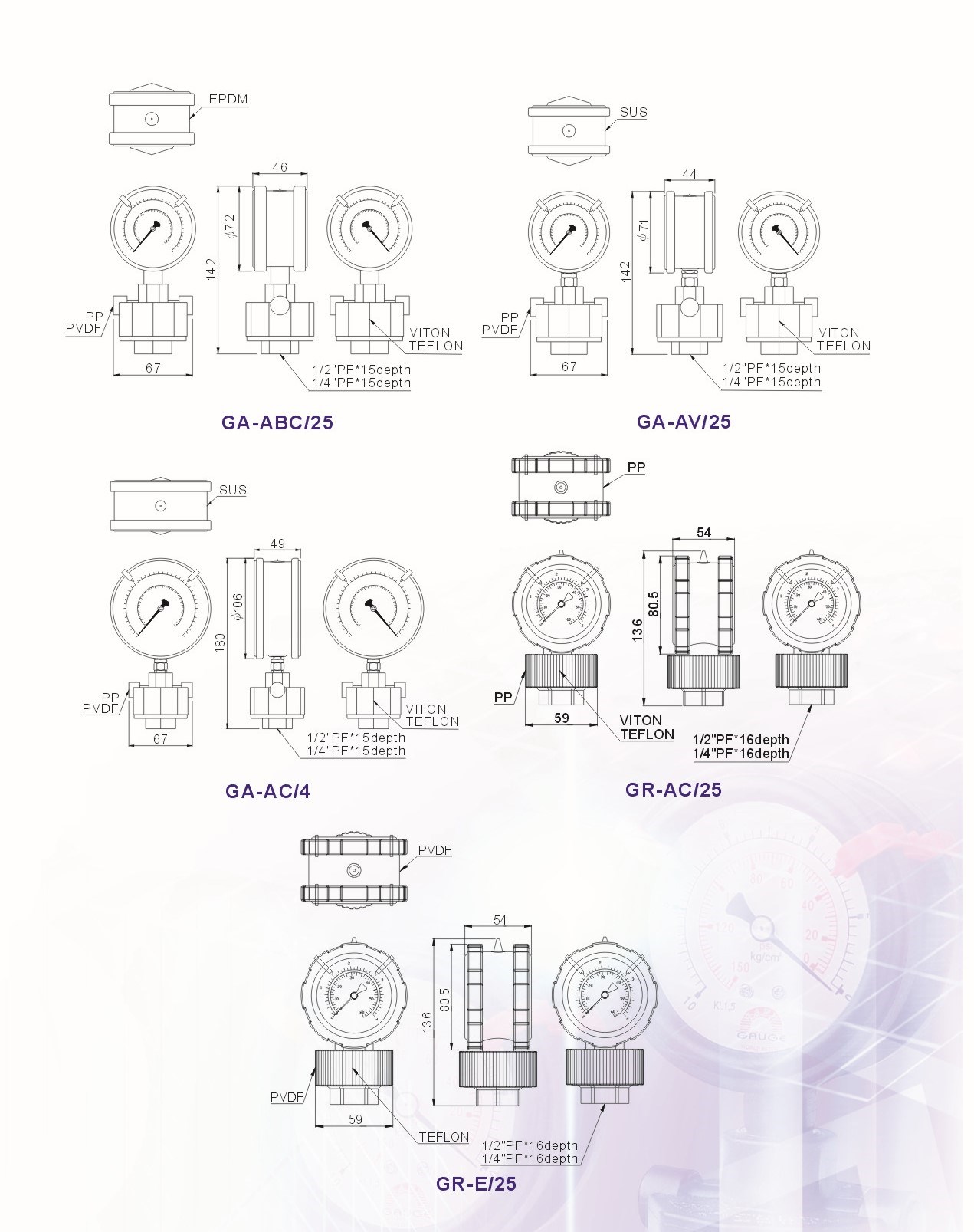

DOUBLE-SIDE P.P DIAPHRAGM PRESSURE GAUGE｜Technical Specifications & Dimension Drawings

Specification

Diameter：63、100(mm) ; 2.5", 4"
Pressure Range: 0.35kg/cm² ~ 50kg/cm²（5psi ~ 700psi）
Casing & Bezel: SUS 304 Stainless Steel or EPDM Coated, Impact-Resistant PP, PVDF
Connection: 1/8", 1/4", 3/8", 1/2", PT, NPT, BSPT, PF
Filling: 99.5% Glycerin or 1000# Silicone Oil
Diaphragm: PP, TEFLON, or PVDF
Capsule: VITON or TEFLON
Accuracy: ±1.5% F.S.D
Operating Temperature: -10°C to +85°C (PP), -10°C to +160°C (TEFLON / PVDF)

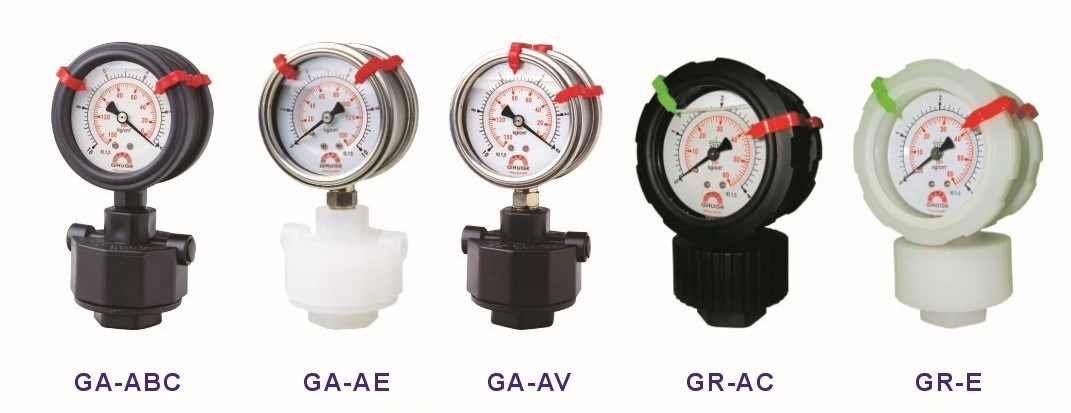

Models: GA-ABC, GA-AE, GA-AV, GR-AC, GR-E

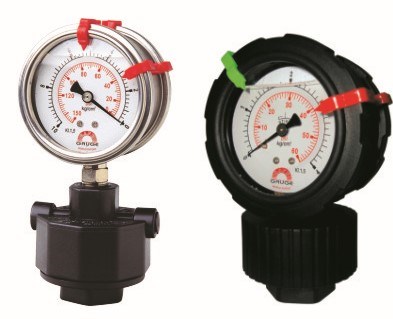

Note: For 2.5" and 4" diameter gauges, two red safety pointers are included to define the safe operating range.
