Liquid Filled / Contact Type PP Diaphragm Pressure Gauge | Technical Specifications & Dimension Drawings
Technical Specifications
-
Diameter: 50, 63, 75, 100(mm); 2", 2.5", 3", 4"
-
Pressure Range: 0.35kg/cm² ~ 50kg/cm² (5psi ~ 700psi)
-
Casing & Bezel: SUS 304 stainless steel or EPDM coated, impact-resistant PP, PVDF
-
Connection: 1/4PT, 1/2PT mount or other panel mount
-
Diaphragm: PP, TEFLON, or PVDF
-
Capsule: VITON or TEFLON
-
Accuracy: ±1.5% F.S.D
-
Operating Temperature Range: -10°C to +85°C (PP), -10°C to +160°C (TEFLON / PVDF)
-

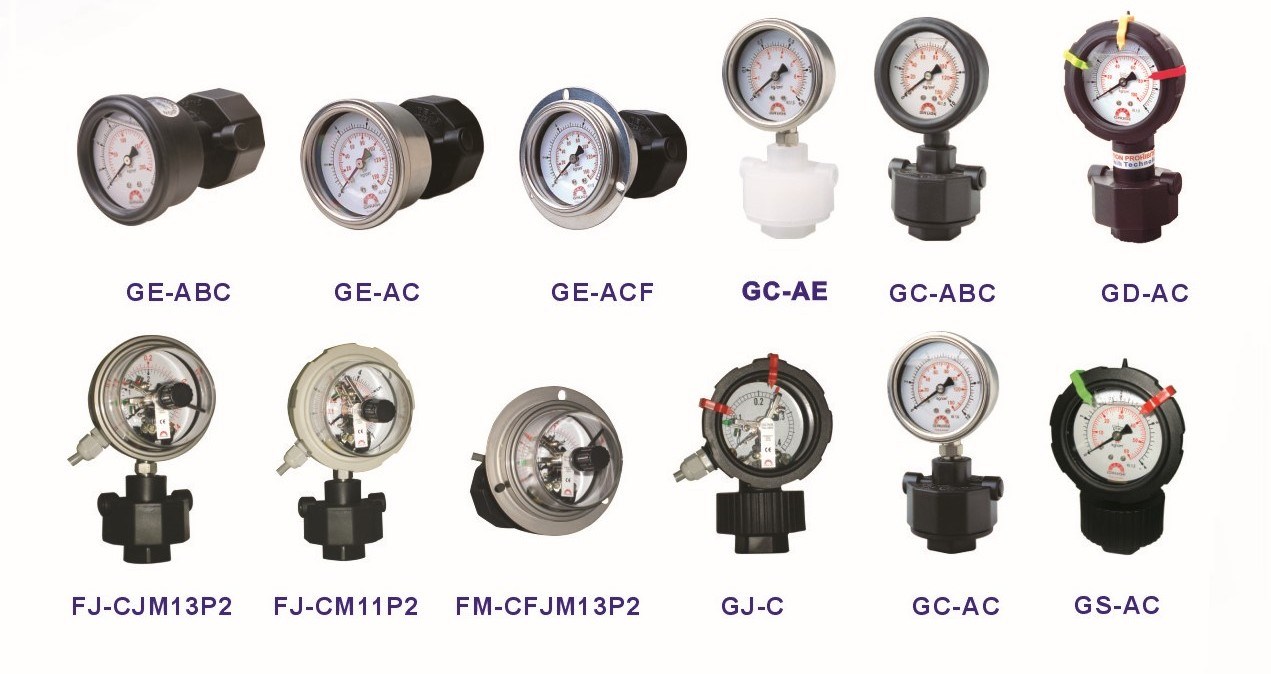

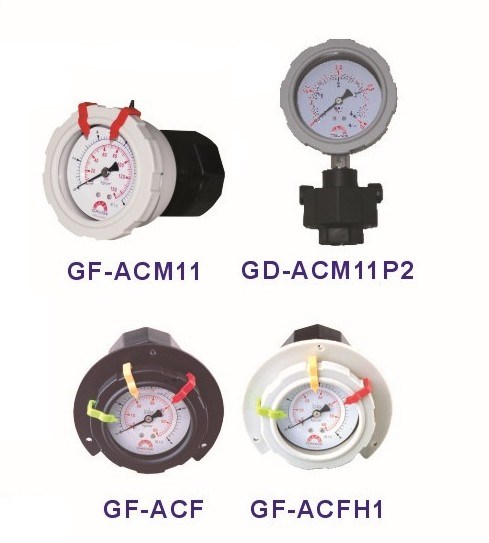

Models: GF-ACM11, GF-ACF, GF-ACFH1, GD-ACM11P2, GA-ABC, GA-AC, GE-ACF, GC-AE, GC-ABC, GD-AC, FJ-CJM13P2, FJ-CM11P2, FM-CFJM13P2, GJ-C, GC-AC, GS-A

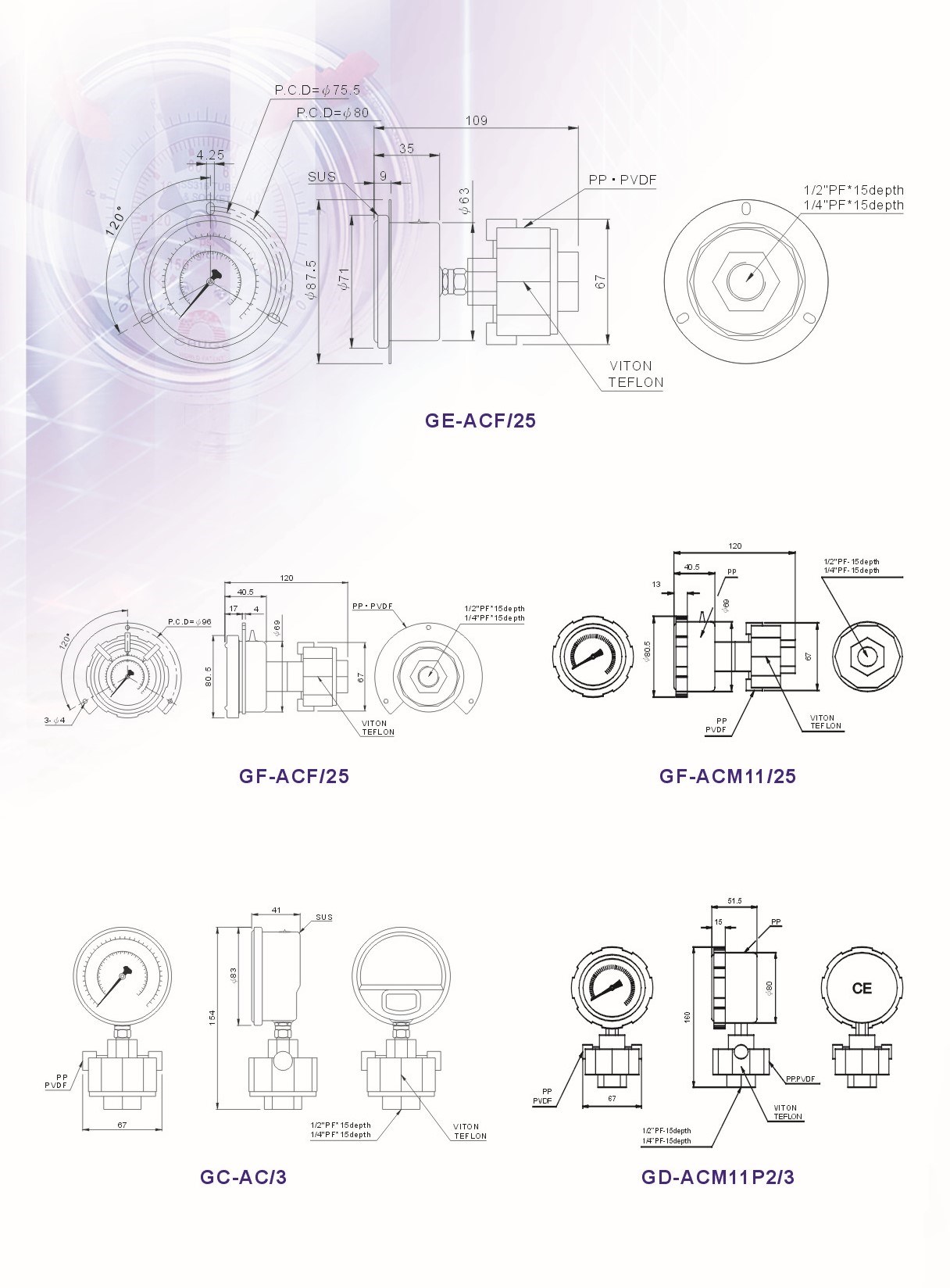

Models & Dimension Drawings
 |
 |
