Diaphragm Pressure Gauge | Threaded Connection (Female/Male), Custom Materials | Technical Specifications & Dimension Drawings
Applications
Suitable for pressure sources with corrosion, high viscosity, solidification, coagulation, and latex-type conditions, such as painting machinery, food machinery, chemical machinery, homogenizers, pulp machinery, and electroplating machinery.
Various diaphragm pressure gauges are available for customization.
Threaded Connection
-

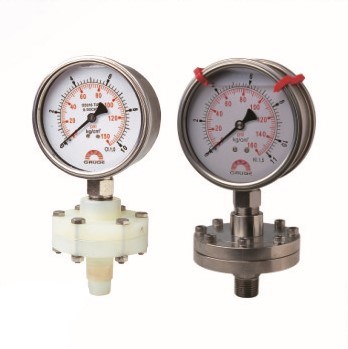

The threaded type can be divided into female thread and male thread. The male thread style generally comes in Model 90 and Model 70.
-
Thread specifications: 1/4" to 1" available upon request.
-
Available materials: SUS 304# 316#, PP, TEFLON, PVC.
Main Models (illustrative)
-

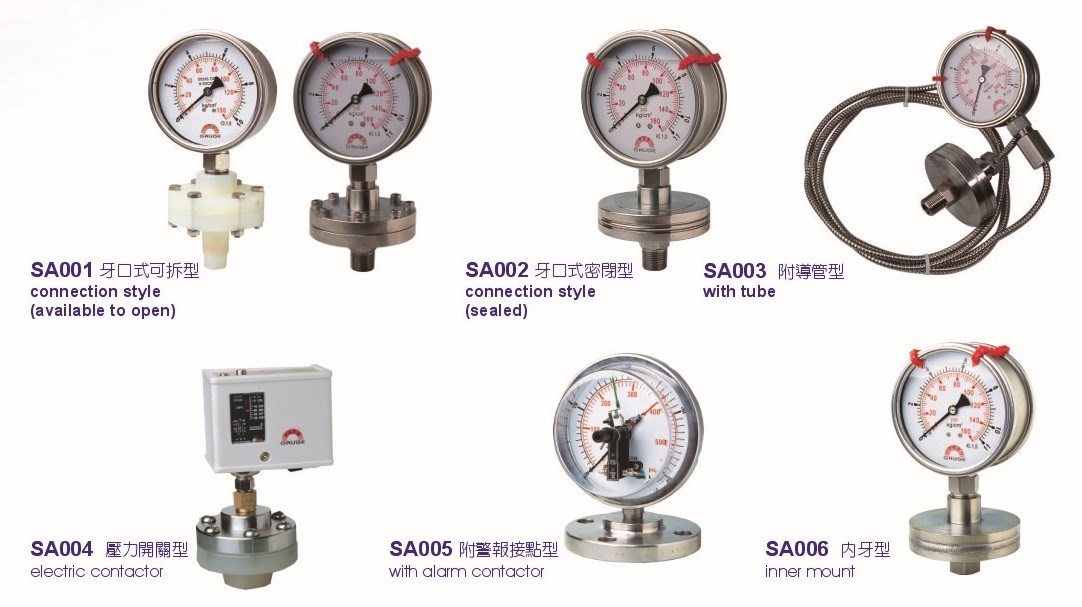

SA001 connection style (available to open)
-
SA002 connection style (sealed)
-
SA003 with tube
-
SA004 electric contactor
-
SA005 with alarm contactor
-
SA006 inner mount
Pressurized capsule materials: TEFLON, SUS 304, 316L, TANTALUM, TITANIUM, VITON
Flange Type
The flange type is divided into single flange, double flange, and cross (Z-type) flange.
Specifications range from 1/2" 10K to 2" 10K, and the materials used are SUS 304 and 316#.
-

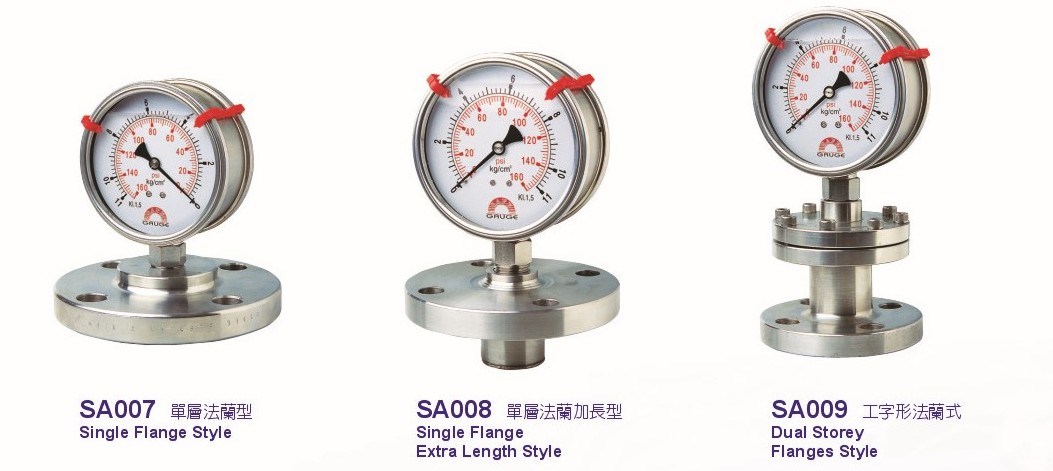

SA007 Single Flange Style
-
SA008 Single Flange Extra Length Style
-
SA009 Dual Storey Flanges Style
Sanitary Type
The sanitary type is divided into clamp, nut, and male thread (clamp can be purchased separately or as an option).
Specifications range from 1" to 4". This type of diaphragm pressure gauge is widely used in the food, pharmaceutical, and chemical industries for pressure measurement.
-

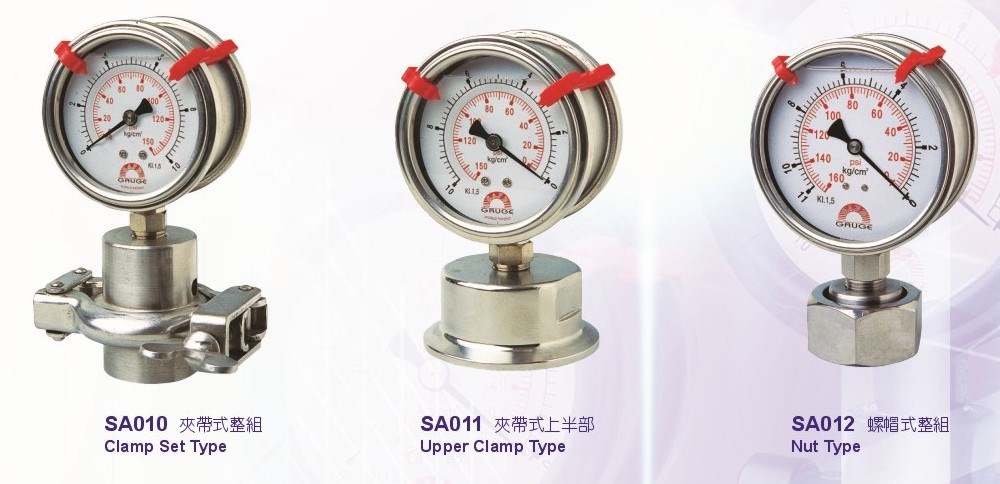

SA010 Clamp Set Type
-
SA011 Upper Clamp Type
-
SA012 Nut Type
