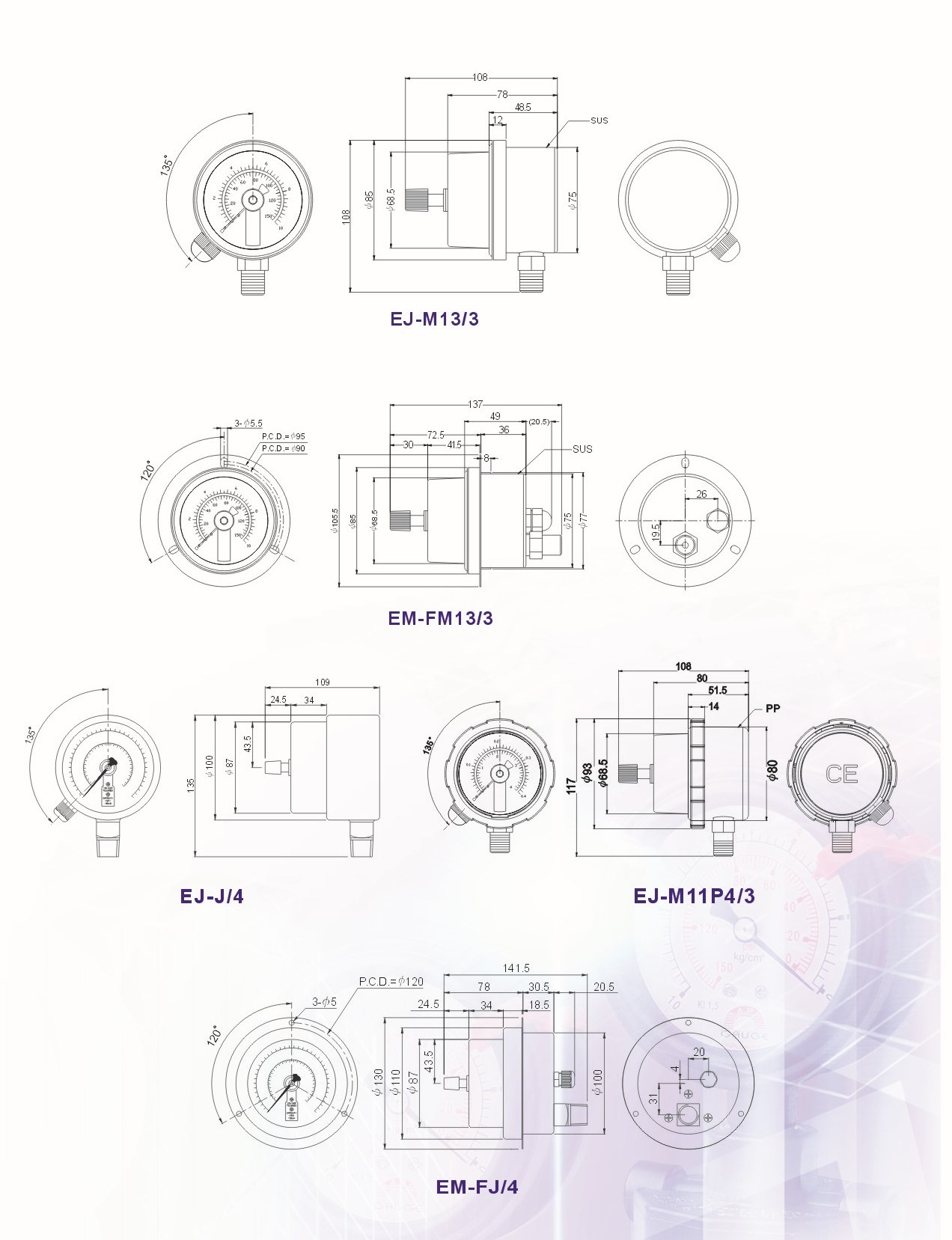

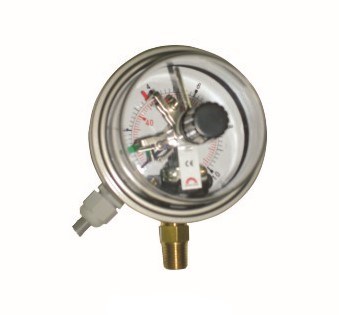

Pressure Gauges, Vacuum Gauges, Compound Gauges with Electrical Connection | Technical Specifications & Dimension Drawings
Technical Specifications
-
Diameter: 75, 100(mm); 3", 4"
-
Pressure Range: -76cmHg ~ 0 ~ 1000kg/cm² (-30inHg ~ 0 ~ 15000psi)
-
Casing & Bezel: Steel, chrome plating (polished finish), SUS 304, anti-shock PP
-
Bourdon Tube: Brass or 316L stainless steel
-
Connection: 1/4", 3/8", 1/2" PT, NPT, PF
-
Accuracy: ±1.0%F.S.D, ±1.5%F.S.D
-
Operating Temperature Range: -20°C to +200°C
-
Models:

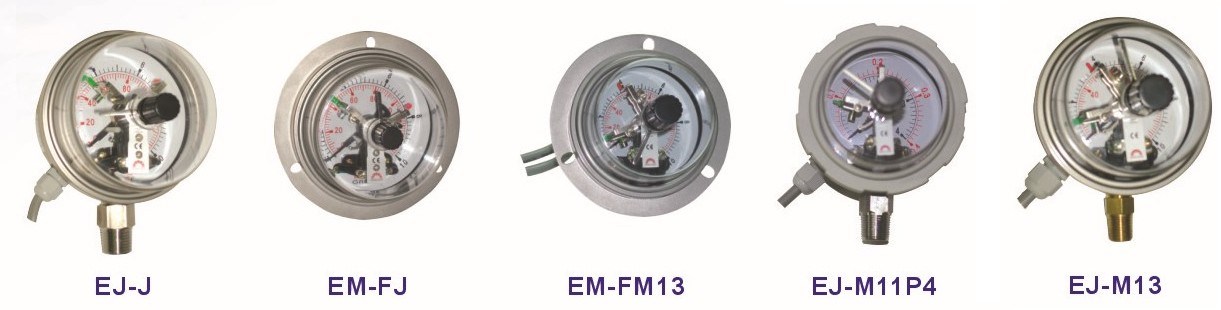

EJ-J, EM-FJ, EM-FM13, EJ-M13, EJ-M11P4

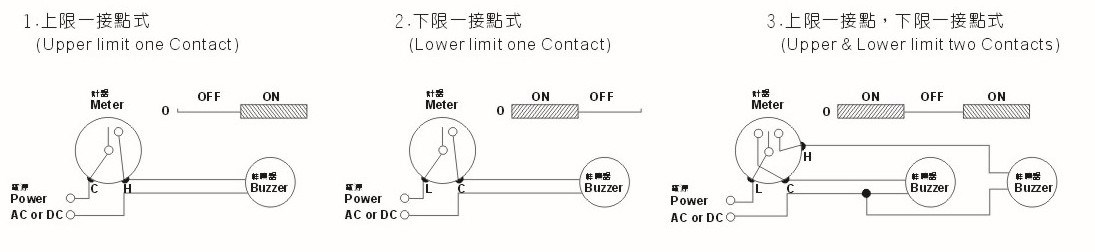

Electric Contact Pressure Gauge Operation & Circuit Examples:
1. Upper limit one Contact
2. Lower limit one Contact
3. Upper & Lower limit two Contacts
