Liquid Filled Pressure Gauge｜Technical Specifications & Structure Diagram

Technical Specifications

Diameter: 50, 63, 75, 100, 150(mm); 2", 2.5", 3", 4", 6"
Pressure Range: -76cmHg ~ 0 ~ 1000kg/cm² (-30inHg ~ 0 ~ 15000psi)
Casing & Bezel: SUS 304 or EPDM coated, anti-shock PP, PVDF
Bourdon Tube: Brass or Phosphor bronze
Filling: 99.5% Glycerin or 1000# Silicone oil
Connection: 1/8", 1/4", 3/8", 1/2", PT, NPT, BSPT, PF
Accuracy: ±1.0% F.S.D, ±1.5% F.S.D
Operating Temperature Range: -20°C to +60°C

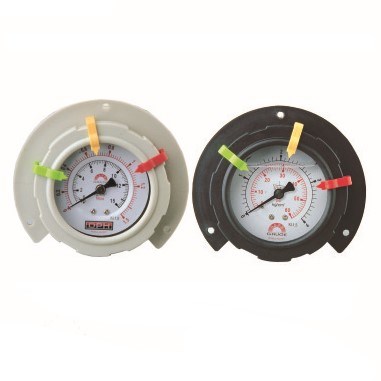

Models:

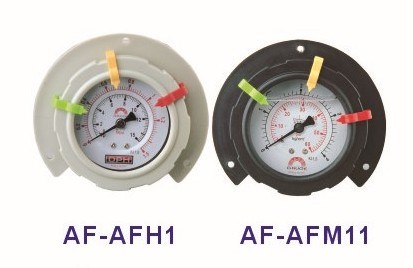

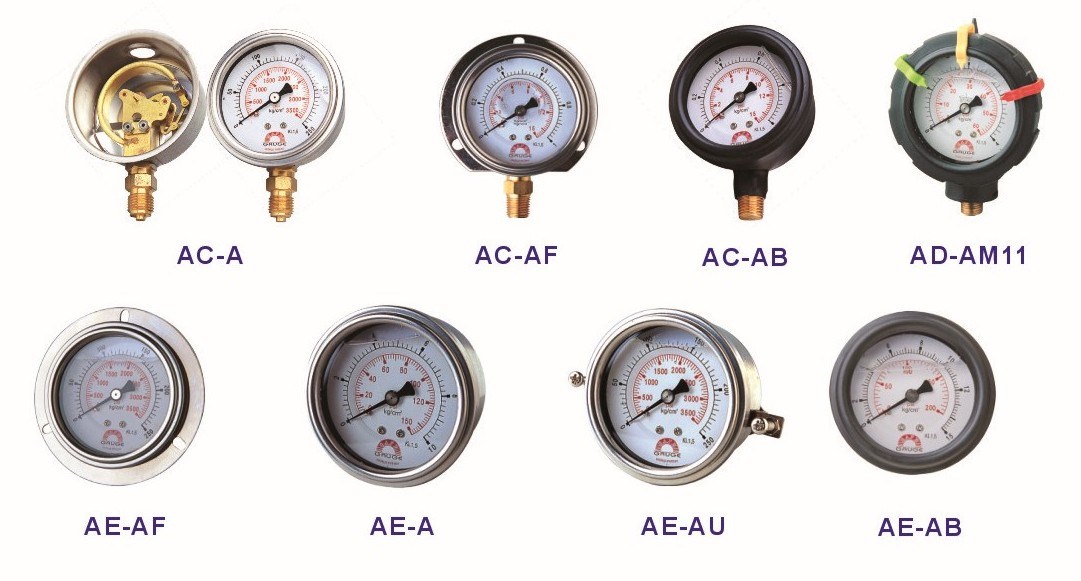

AF-AFH1, AF-AFM11, AC-A, AC-AF, AC-AB, AD-AM11, AE-AF, AE-A, AE-AU, AE-AB
