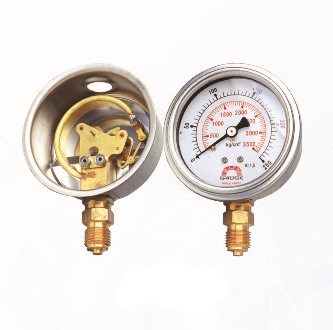

Steam Liquid Filled Pressure Gauge｜Specifications & Structure Diagram

Technical Specifications

Diameter: 2", 2.5", 3", 4", 6" (50, 63, 75, 100, 150 mm)
Pressure Range: -76cmHg ~ 0 ~ 50kg/cm² (-30inHg ~ 0 ~ 700psi)
Casing & Bezel: SUS 304 or EPDM surface, anti-shock PP, PVDF
Bourdon Tube: Brass or Phosphor Bronze
Filling: 99.5% Glycerin or 1000# Silicone Oil
Connection: 1/8", 1/4", 3/8", 1/2"; PT, NPT, BSPT, PF
Accuracy: ±1.0% F.S.D, ±1.5% F.S.D
Temperature Range: -20°C ~ +200°C
Models:

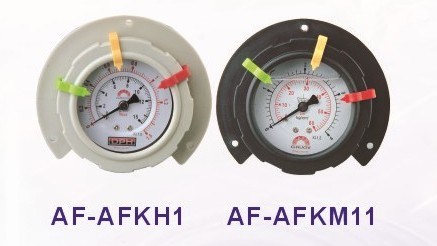

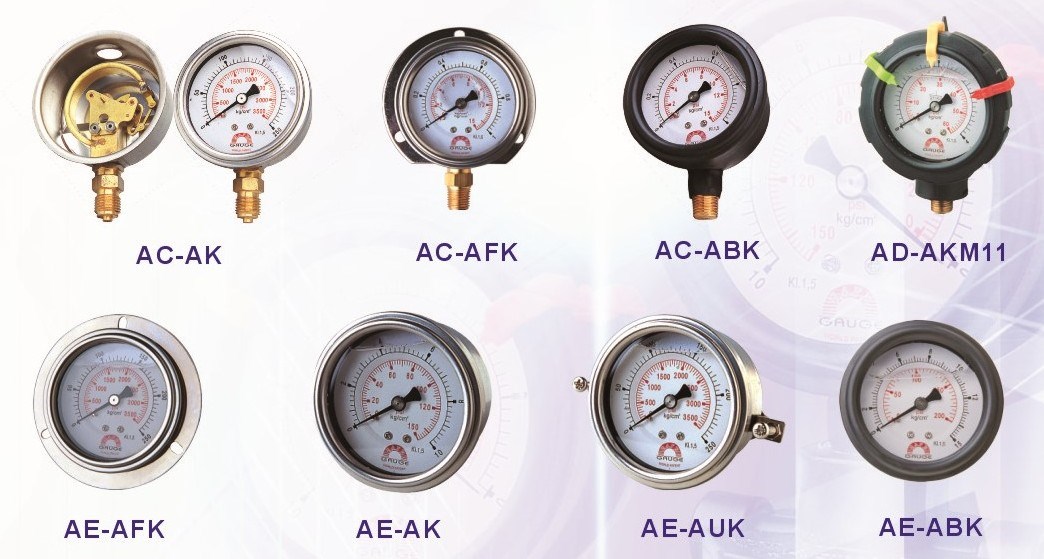

AF-AFKH1, AF-AFKM11, AC-AK, AC-AFK, AC-ABK, AD-AKM11, AE-AFK, AE-AK, AE-AUK, AE-ABK
