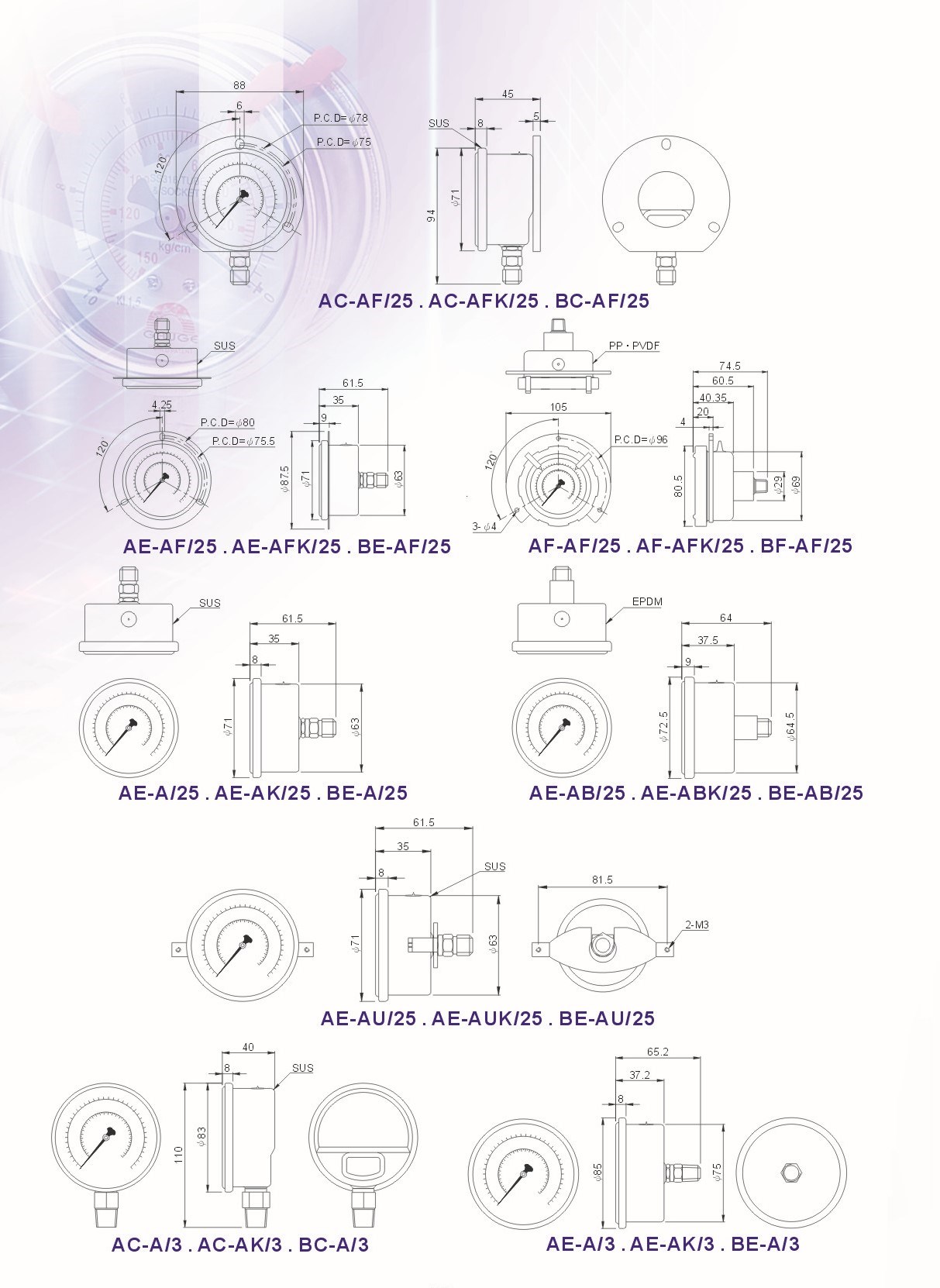

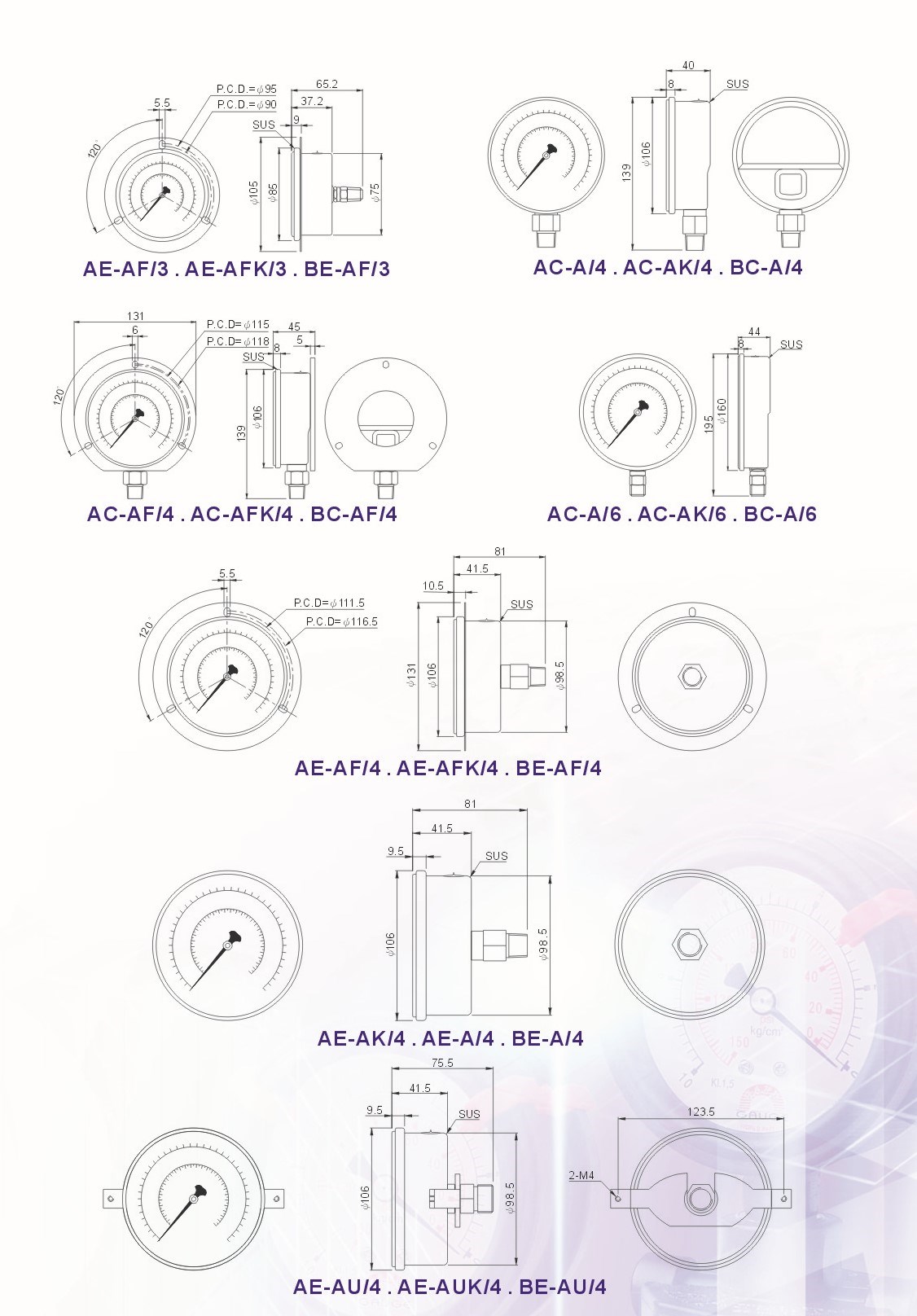

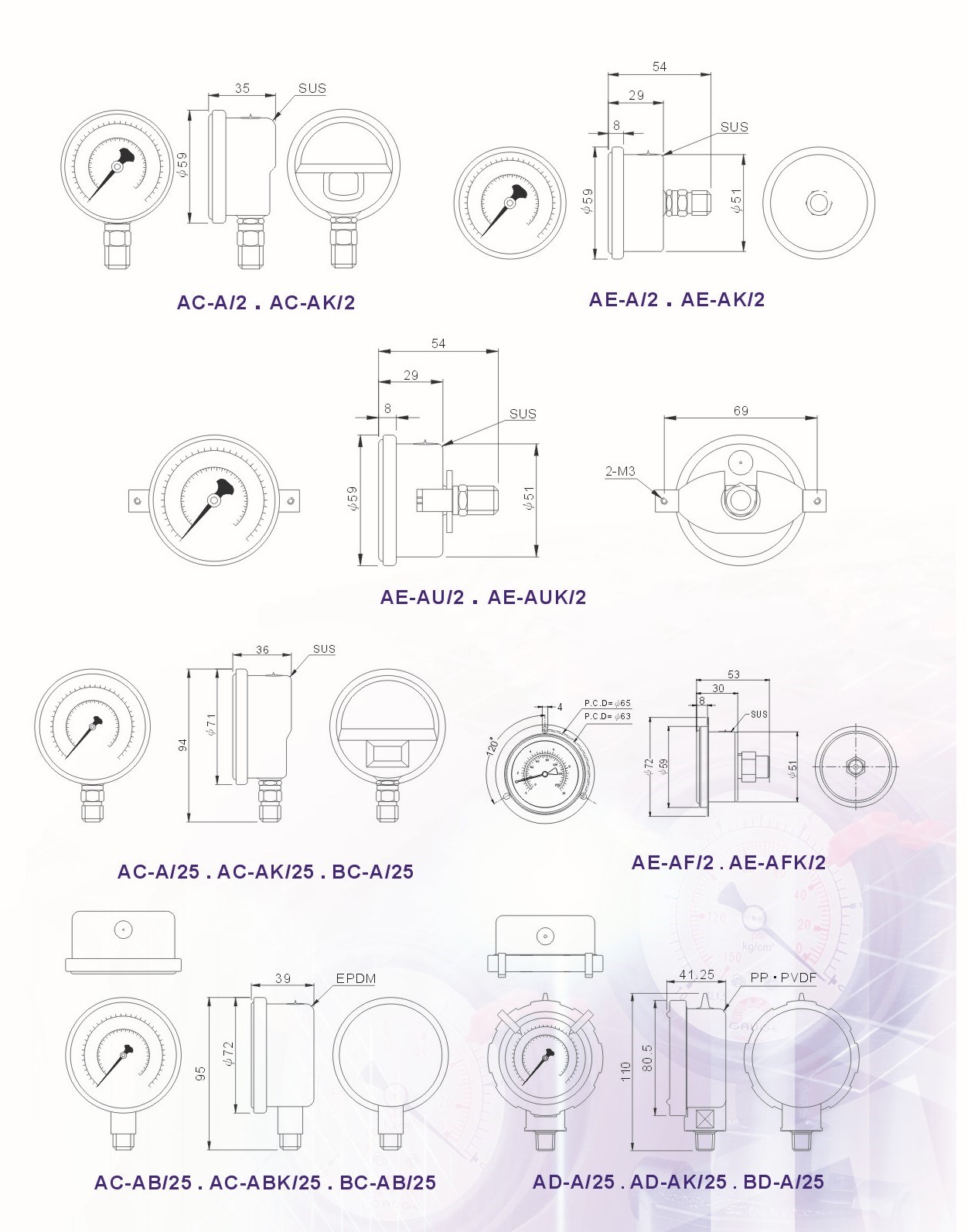

Stainless Steel Pressure Gauge｜Technical Specifications & Dimension Drawings

Technical Specifications

Diameter: 2", 2.5", 3", 4", 6" (50, 63, 75, 100, 150 mm)
Pressure Range: -76cmHg ~ 0 ~ 1000kg/cm² (-30inHg ~ 0 ~ 15000psi)
Casing & Bezel: SUS 304 or EPDM surface, anti-shock PP, PVDF
Bourdon Tube: 316L stainless steel
Filling: 99.5% Glycerin or 1000# Silicone Oil
Connection: 1/8", 1/4", 3/8", 1/2"; PT, NPT, BSPT, PF
Accuracy: ±1.0% F.S.D, ±1.5% F.S.D
Temperature Range: -10℃ ~ +200℃

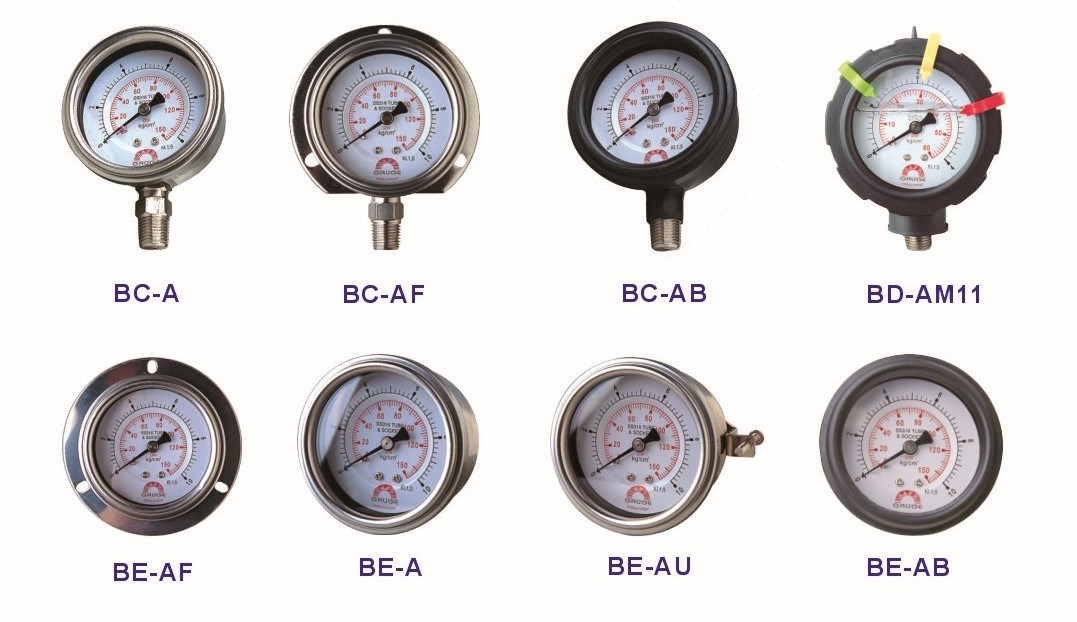

Models:
BF-AFH1, BF-AFM11, BC-A, BC-AF, BC-AB, BD-AM11, BE-AF, BE-A, BE-AU, BE-AB
