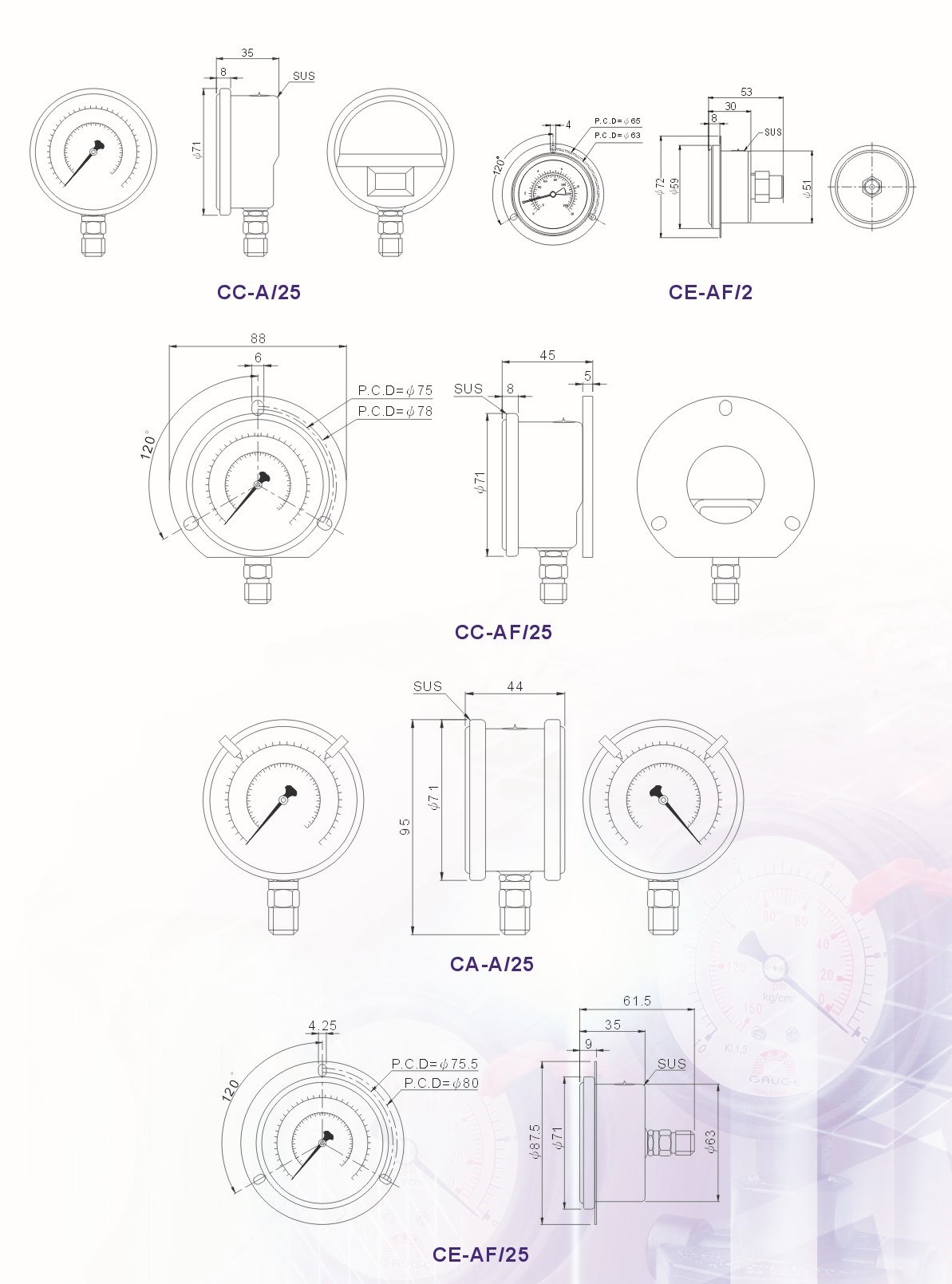

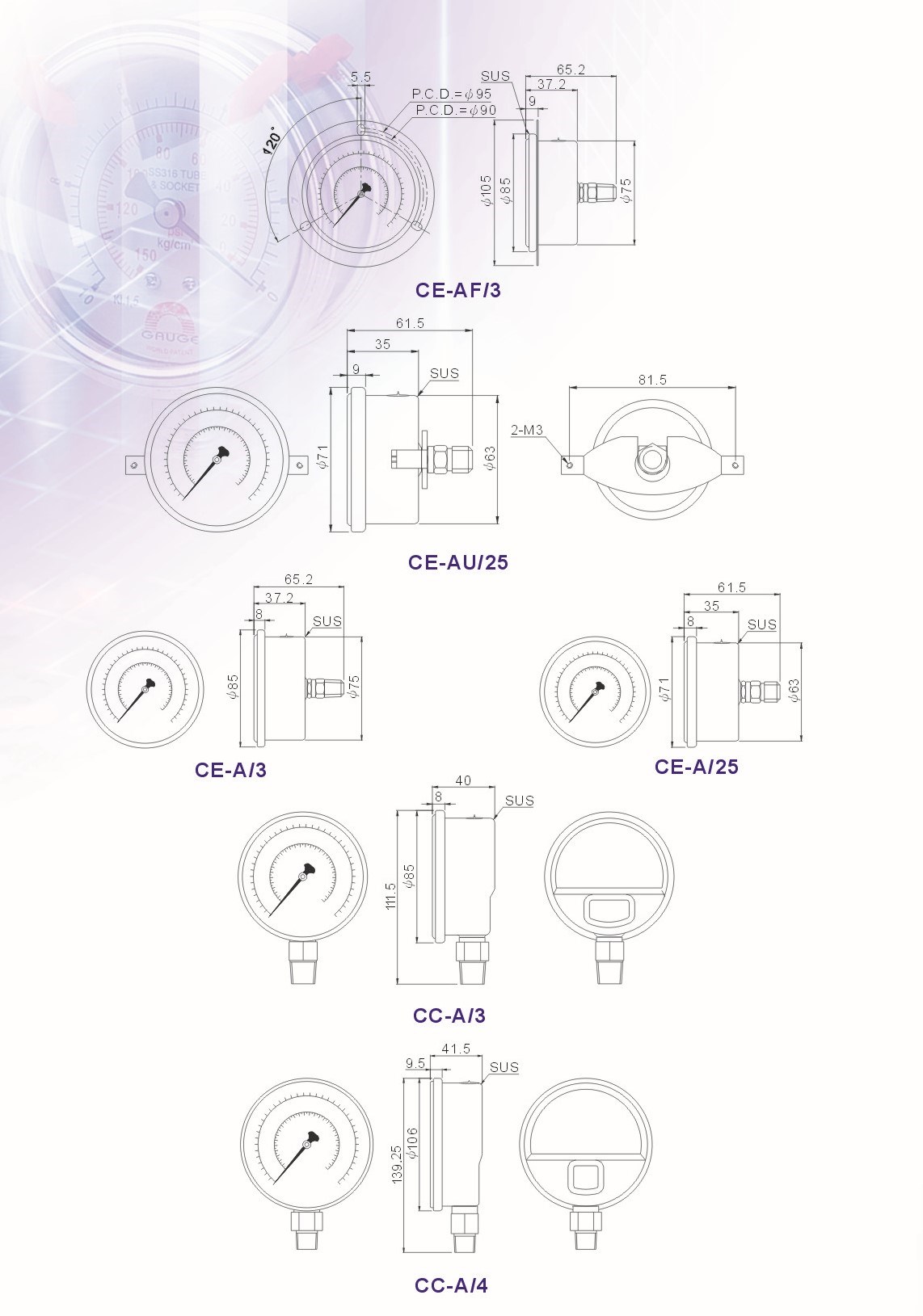

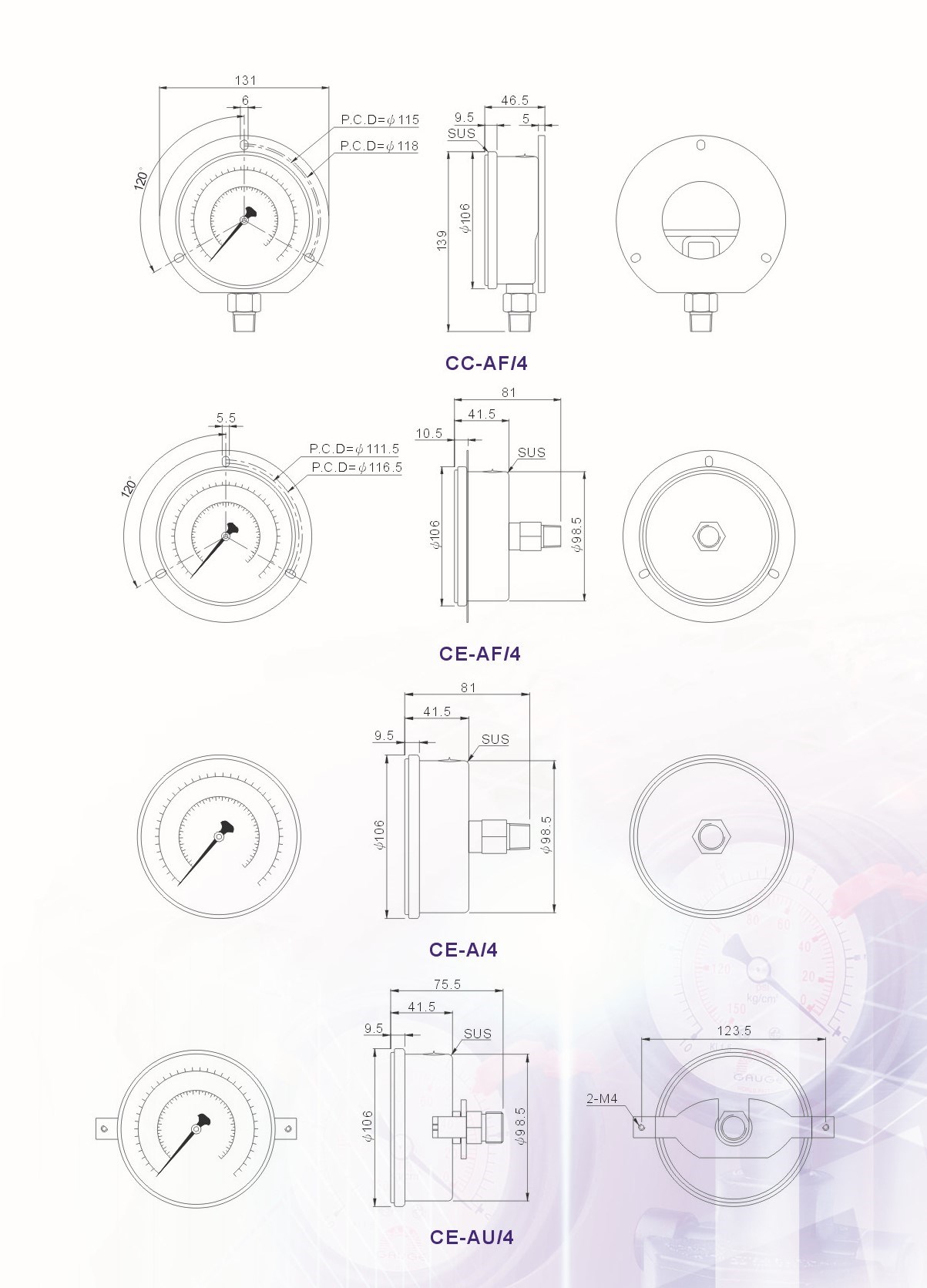

Liquid Filled Refrigeration Pressure Gauge | Technical Specifications & Dimension Drawings

Technical Specifications

Diameter: 2.5", 4" (63, 100 mm)
Pressure Range: -76cmHg ~ 0 ~ 35kg/cm² (-30inHg ~ 0 ~ 500psi)
Casing & Bezel: SUS304 stainless steel; anti-corrosion bezel available in red or blue paint
Bourdon Tube: Phosphor bronze
Filling: 99.5% glycerin or 1000# silicone oil
Connection: 7/16"-20 UNF, 1/8 NPT, BSPT
Accuracy: ±1.5% F.S.D
Operating Temperature Range: -20°C to +60°C
Models:

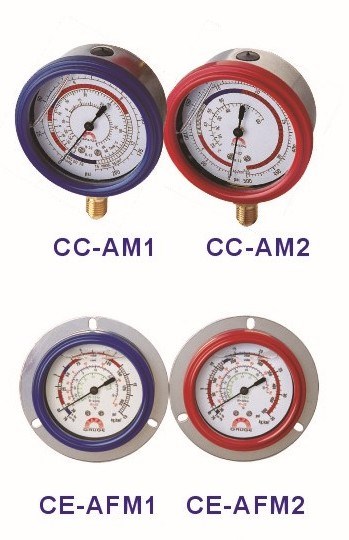

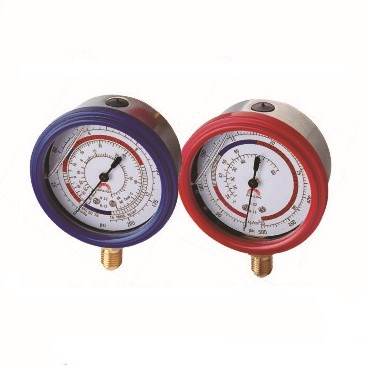

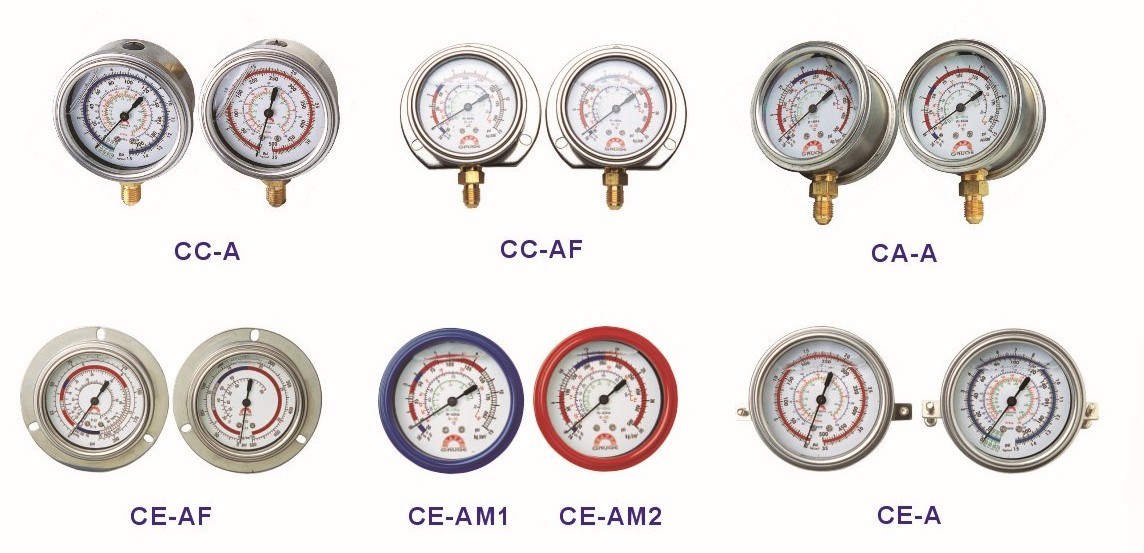

CC-AM1, CC-AM2, CE-AFM1, CE-AFM2, CC-A, CC-AF, CA-A, CE-AF, CE-AM1, CE-AM2, CE-A
