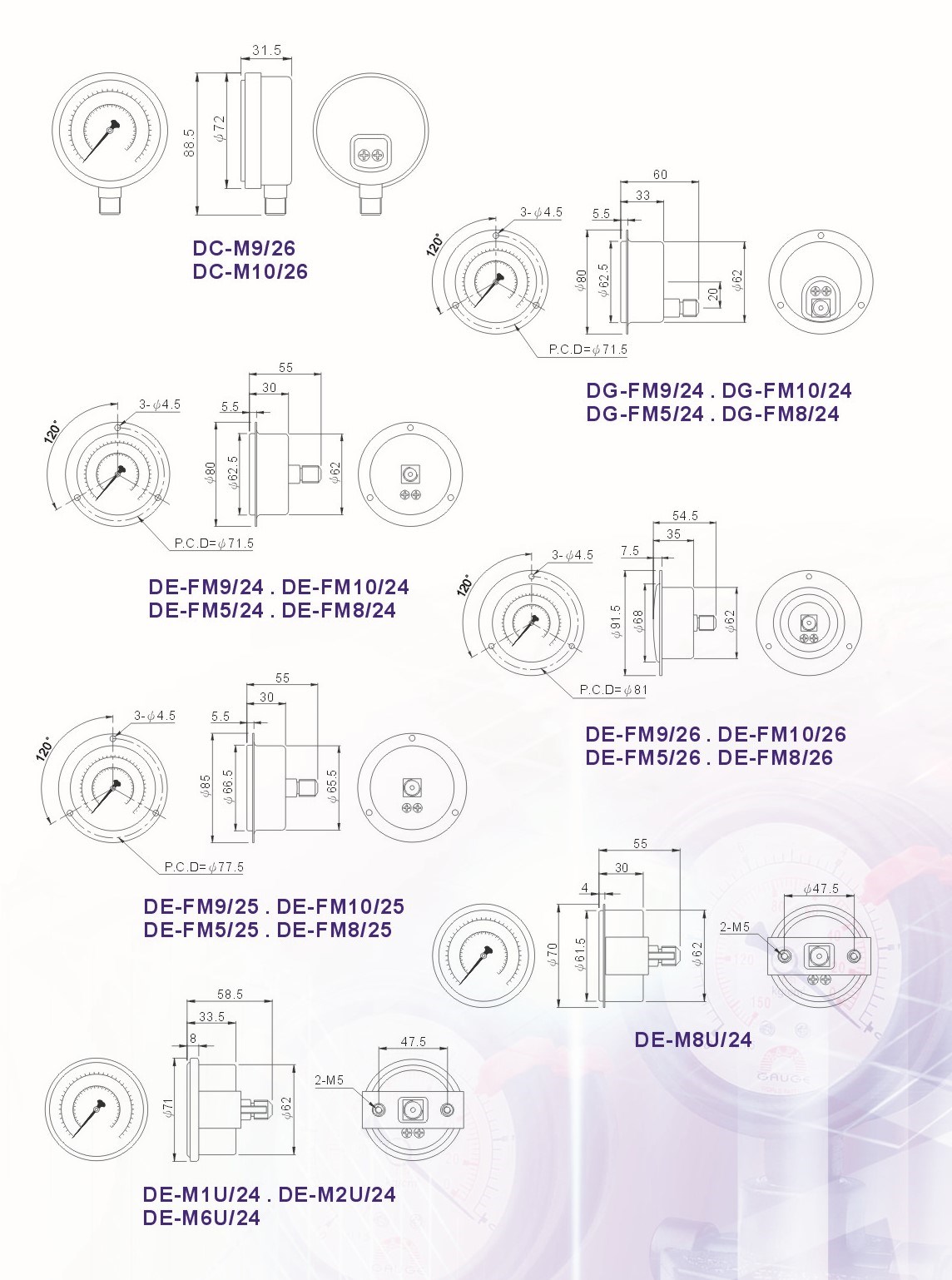

Refrigeration Pressure Gauge | Technical Specifications & Dimension Drawings

Technical Specifications

Diameter: 2.4", 2.5", 2.6" (60, 63, 68 mm)
Pressure Range: -76cmHg ~ 0 ~ 35kg/cm² (-30inHg ~ 0 ~ 500psi)
Casing & Bezel: Steel, corrosion-resistant black, blue or red painted surface, or chrome plated polished finish; optional SUS frame
Bourdon Tube: Phosphor bronze
Connection: 7/16"-20UNF, 1/8 NPT, BSPT
Accuracy: ±1.5% F.S.D
Operating Temperature Range: -20℃ to +60℃

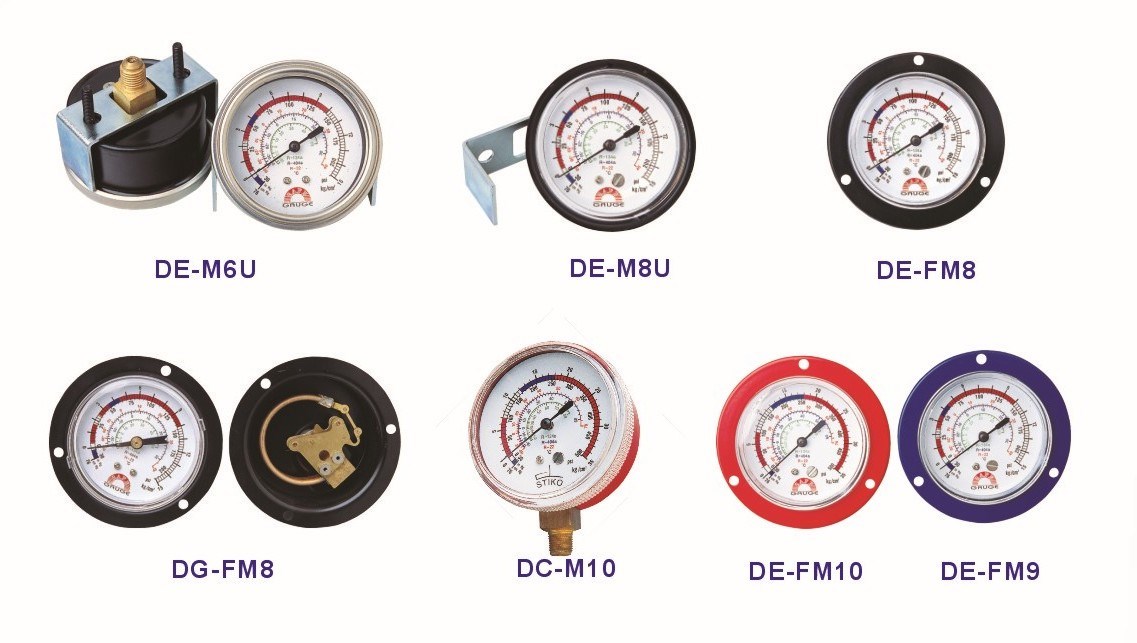

Models:

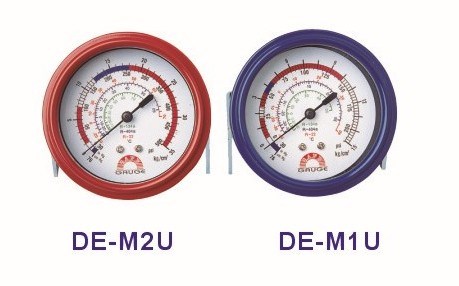

DE-M2U, DE-M1U, DE-M6U, DE-M8U, DE-FM8, DG-FM8, DC-M10, DE-FM10, DE-FM9
