General Industrial Service Pressure Gauges, Vacuum Gauges & Compound Gauges | Technical Specifications & Dimension Drawings

Technical Specifications

Diameter: 1.5", 2", 2.5", 3", 4", 5", 6" (40, 50, 63, 75, 100, 125, 150 mm)
Pressure Range: -76cmHg ~ 0 ~ 1000kg/cm² (-30inHg ~ 0 ~ 15000psi)
Casing & Bezel: Steel, black corrosion-resistant paint or chrome plating (polished finish)
Bourdon Tube: Brass or phosphor bronze
Connection: 1/8", 1/4", 3/8", 1/2"; PT, NPT, BSPT, PF
Accuracy: (1.5", 2") ±2.5% F.S.D; (2.5" ~ 6") ±1.0% or ±1.5% F.S.D
Operating Temperature Range: -20℃ to +60℃

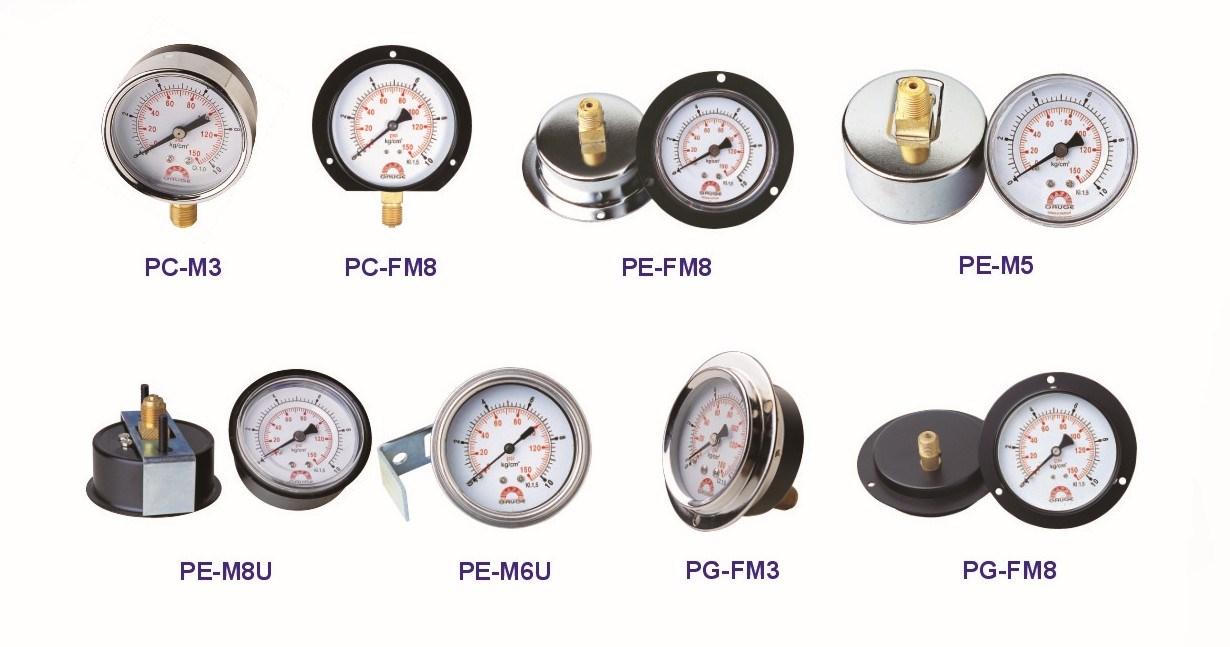

Models:

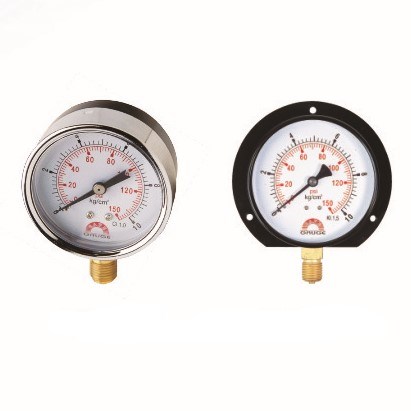

PC-M3, PC-FM8, PE-FM8, PE-M5, PE-M8U, PE-M6U, PG-FM3, PG-FM8
